Fortinet FortiAP 432G Outdoor Wi-Fi 6E Access Point, External Antennas
Fortinet FortiAP 432G Outdoor Wi-Fi 6E Access Point, External Antennas
List price: $2,867.00
Fortinet list price (MSRP). Request a quote for your price.
Not sure what you need? Our US-based Cisco certified engineers will help you build the right solution.
Fortinet products are quoted individually. Request a quote and our team will follow up.
Request a QuoteShare

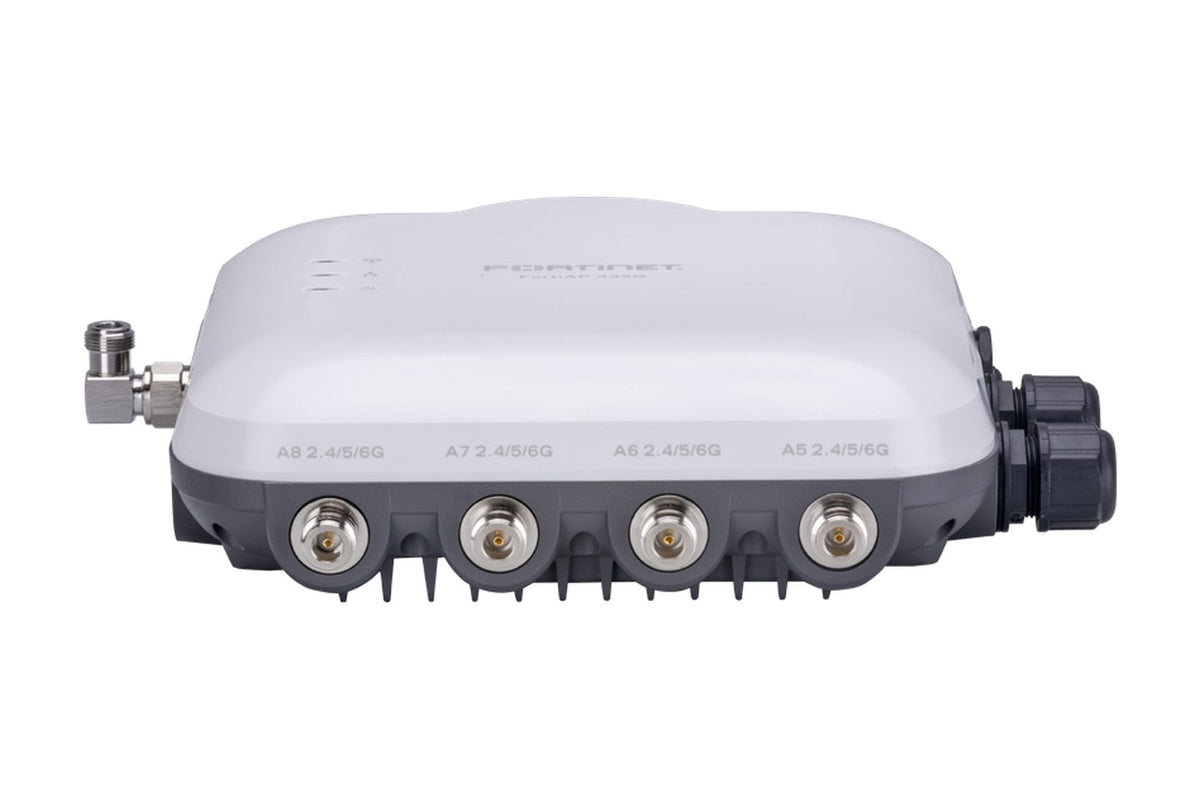

The FortiAP 432G is a Fortinet outdoor wireless access point. Fortinet products are available through Hydrasat.
Key specifications
| SKU (US region) | FAP-432G-A |
|---|---|
| Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Radios | 3 radios: 2.4, 5 and 6 GHz (4x4), + BLE |
| Antennas | External (N-type, 9 total) |
| Uplink | 1x 10G multi-gigabit RJ45 and 1x GE RJ45 (PoE out) |
| Power | 802.3bt PoE (60 W PoE injector included) |
| Environment | Indoor/outdoor, IP67 |
All performance values are "up to" and vary by configuration. Source: Fortinet FortiAP datasheet.
Management and support
FortiAP access points need a controller: they are managed by the WLAN controller built into a FortiGate, or by FortiEdge Cloud. Use of the 6 GHz band is subject to regional regulatory approval. FortiCare Premium support (FC-10-P432G-247-02-DD) is quoted separately for a 1, 3 or 5 year term. We confirm the model, region, controller and support term in your quote.
Compatible external antennas
The FortiAP 432G uses N-type external antenna connectors (9 total). Choose Fortinet antennas with N-type connectors:
- Fortinet FANT-04ABGN-0606-O-N: 4-port dual-band outdoor omni, 6 dBi
- Fortinet FANT-04ABGN-8065-P-N: 4-port dual-band patch, 8/6.5 dBi
- Fortinet FANT-04ABGN-1414-P-N: 4-port dual-band high-gain patch, 14 dBi
- Fortinet FANT-04BEAX-1313-D-N: 4-port tri-band (2.4/5/6 GHz) directional, 13 dBi
- Fortinet FANT-08BEAX-1213-D-N: 8-port tri-band (2.4/5/6 GHz) directional, 12/13/13 dBi
See all Fortinet FortiAP Antennas. Suggested antennas are matched by connector type and port count (Fortinet FortiAP datasheet); Hydrasat engineers confirm the right antenna pairing, cabling and gain settings in your quote.
