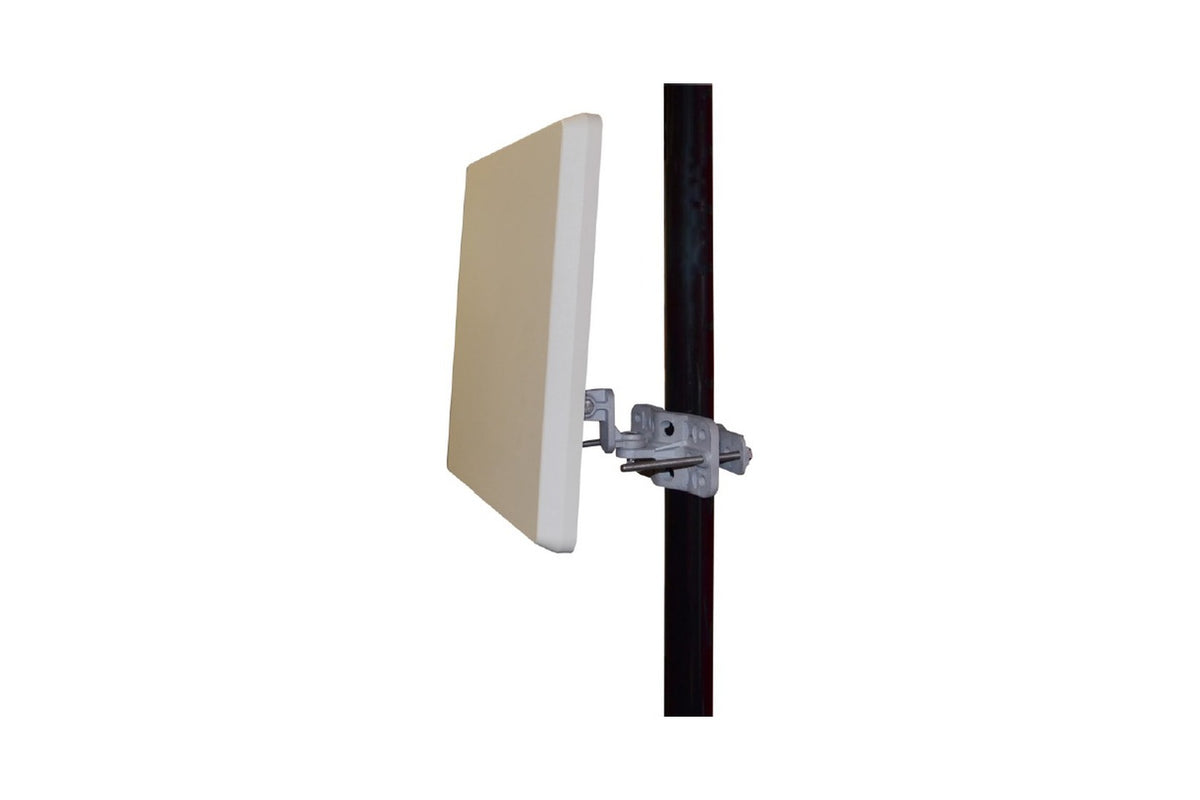

Fortinet FANT-04ABGN-1414-P-N 4-Port Dual-Band 14 dBi Patch Antenna, N-Type
Fortinet FANT-04ABGN-1414-P-N 4-Port Dual-Band 14 dBi Patch Antenna, N-Type
List price: $853.65
Fortinet list price (MSRP). Request a quote for your price.
Not sure what you need? Our US-based Cisco certified engineers will help you build the right solution.
Fortinet products are quoted individually. Request a quote and our team will follow up.
Request a QuoteShare
The FANT-04ABGN-1414-P-N is a Fortinet external antenna for FortiAP access points with external antenna connectors. Fortinet products are available through Hydrasat.
Key specifications
| SKU | FANT-04ABGN-1414-P-N |
|---|---|
| Pattern | Patch (directional), high density |
| Bands | 2.4/5 GHz (2400–2500 / 5150–5850 MHz) |
| Gain | 14 dBi / 14 dBi |
| Beamwidth (H / V) | 35° / 35° |
| Ports | 4 dual-band |
| Connectors | 4x N-Type Female (jacks on the back) |
| Cable | Order separately |
| Environment | Indoor / outdoor |
| Mounting | Mast (industrial articulating mount included) |
Source: Fortinet Antenna Portfolio data sheet.
FortiAP compatibility
Listed by Fortinet as an optional antenna for the FortiAP 432FR. Choose the antenna to match your FortiAP model's external connector type and port count; for example, the FortiAP 432G has N-type external connectors, while the FortiAP 243K and FortiAP 443K have RP-SMA external connectors (FortiAP data sheet). External antenna gain is set in the FortiAP profile and must stay within regulatory EIRP limits (Fortinet configuration guide). We confirm the right antenna, cabling and AP pairing in your quote.
