Fortinet FANT-08ABGN-1213-D-R 8-Port Dual-Band 12/13 dBi Directional Antenna, RP-SMA
Fortinet FANT-08ABGN-1213-D-R 8-Port Dual-Band 12/13 dBi Directional Antenna, RP-SMA
List price: $1,209.60
Fortinet list price (MSRP). Request a quote for your price.
Not sure what you need? Our US-based Cisco certified engineers will help you build the right solution.
Fortinet products are quoted individually. Request a quote and our team will follow up.
Request a QuoteShare

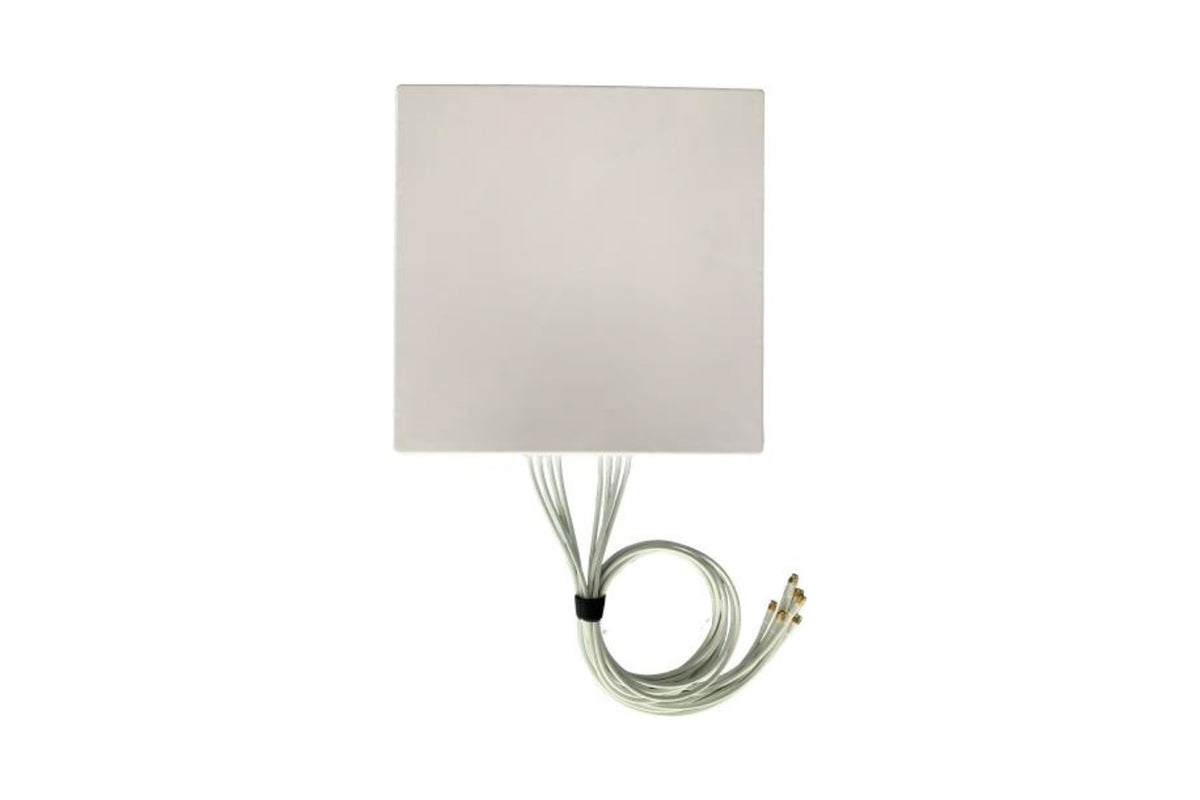

The FANT-08ABGN-1213-D-R is a Fortinet external antenna for FortiAP access points with external antenna connectors. Fortinet products are available through Hydrasat.
Key specifications
| SKU | FANT-08ABGN-1213-D-R |
|---|---|
| Pattern | Directional, dual polarized (4x horizontal / 4x vertical) |
| Bands | 2.4/5 GHz (2400–2500 / 5150–5850 MHz) |
| Gain | 12 dBi / 13 dBi |
| Beamwidth (H / V) | 50°/40° / 45°/28° (ports 1–4); 45°/28° / 50°/40° (ports 5–8) |
| Ports | 8 dual-band pigtails |
| Connectors | 8x RP-SMA Male |
| Cable | 36 in. (91.44 cm) pigtails |
| Environment | Indoor / outdoor, IP-54; wind load 100 mph |
| Mounting | 10 in. Strong Arm Mount included |
Source: Fortinet Antenna Portfolio data sheet.
FortiAP compatibility
Fortinet's data sheet gives the port connection scheme for the FortiAP U433F. Choose the antenna to match your FortiAP model's external connector type and port count; for example, the FortiAP 432G has N-type external connectors, while the FortiAP 243K and FortiAP 443K have RP-SMA external connectors (FortiAP data sheet). External antenna gain is set in the FortiAP profile and must stay within regulatory EIRP limits (Fortinet configuration guide). We confirm the right antenna, cabling and AP pairing in your quote.
