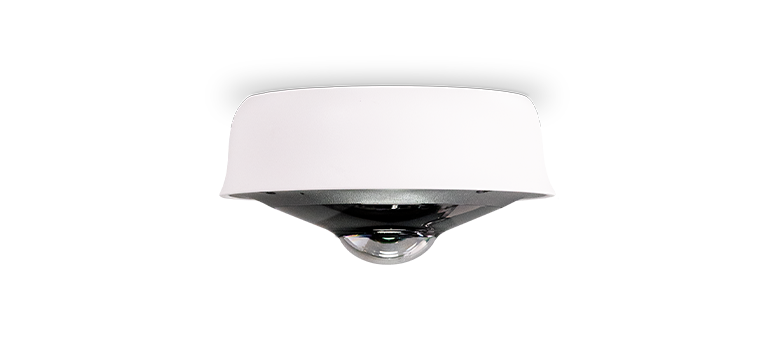

Meraki MV93 Cloud Managed Outdoor 360° Camera w/ Digital Pan-Tilt-Zoom (256Gb)
MV93 Series Datasheet
The Meraki MV93 is a third-generation MV smart camera that combines physical security and advanced analytics in a fisheye design. It is easy to install and offers a 360° field of view (FoV). The MV93 delivers full visibility and smart security for various outdoor applications.
Security that tells a complete story
With video resolution up to 2880x2880 and 360-degree views, the MV93 captures the complete scene, providing both broad context and clear detail when needed. This panoramic overview enhances situational awareness, making surveillance more efficient.
Compatible with a variety of mounting accessories, the outdoor-rated MV93 series cameras can be installed in diverse deployment scenarios to provide comprehensive coverage. Their 360° field of view and IR illumination make them ideal for enhancing safety and security in parking lots, warehouses, and other open spaces—even in low-light conditions.
Additionally, the MV93 series is engineered to withstand the rigors of transportation environments, ensuring reliable performance under shock and vibration conditions with EN 50155 Railway Compliance certification.
Product Highlights
|
· 360° fisheye lens camera |
· Digital Pan-Tilt-Zoom (DPTZ) mode for live & historical video |
|
· Compact form factor with 180° horizontal and vertical FoV |
· Machine learning capability for intelligent object detection |
|
· Large level of detail with up to 2880x2880 video resolution |
· Role-based user accounts provide secure video access and ensure privacy |
|
· Guaranteed days of video with Smart Retention |
· Cloud-augmented edge storage for minimal physical infrastructure |
|
· Night vision with IR illumination up to 20 m / 66 ft |
· Built-in automatic security with secure boot and signed firmware, backed by a hardware security chip |
|
· IK10+ and IP67 rated for deployment in more demanding environments |
· Suitable for deployments of all sizes, 1-10,000+ cameras |
|
· Intelligent motion indexing with search engine |
· NDAA Compliant |
|
· Built-in analytics like Motion Search, Motion Recap, and Motion Heatmaps |
· EN 50155 Railway Compliance |
Technical Breakdown
|
Category |
Specifications |
|
Camera |
1/2.3” 12.4MP (4072x3046) progressive CMOS image sensor |
|
High-performance fisheye lens |
|
|
256GB high-endurance solid-state storage (MV93) |
|
|
512GB high-endurance solid-state storage (MV93M) |
|
|
1TB high-endurance solid-state storage (MV93X) |
|
|
1.6 mm focal length |
|
|
f/2.0 aperture |
|
|
Field of view: horizontal 180°, vertical 180° |
|
|
1/30 second to 1/32,000 second shutter speed |
|
|
Auto day/night mode switching capable |
|
|
Built-in IR illuminators, effective up to 20 m (66 ft) |
|
|
Heating elements |
|
|
Video |
8MP video recording (2880x2880) with H.264 Smart Codec, up to 15fps |
|
4.2MP (2112x2112) 360° overview with H.264 Smart Codec, up to 24fps |
|
|
1MP (1080x1080) 360° overview with H.264 Smart Codec, up to 24fps |
|
|
High dynamic range (HDR) |
|
|
Cloud-augmented edge storage (locally stored video; metadata in the cloud) |
|
|
Optimized retention settings (scheduling, motion-based) for variable retention |
|
|
Direct live streaming with no client software (native browser playback)* |
|
|
Stream video anywhere with automatic cloud proxy |
|
|
Audio recording supported with three (3) built-in microphones |
|
|
DORI Specifications (Maximum Resolution) |
Detect (25 ppm/ 8 ppf) |
|
36.7 m / 120.4 ft (MV93X) |
|
|
26.9 m / 88.3 ft (MV93) |
|
|
Observe (63 ppm/ 19 ppf) |
|
|
14.6 m / 47.9 ft (MV93X) |
|
|
10.7 m / 35.1 ft (MV93) |
|
|
Recognize (125 ppm/ 38 ppf) |
|
|
7.3 m / 23.9 ft (MV93X) |
|
|
5.4 m / 17.7 ft (MV93) |
|
|
Identify (250 ppm/ 76 ppf) |
|
|
3.7 m / 12.1 ft (MV93X) |
|
|
2.7 m / 8.9 ft (MV93) |
|
|
Networking and wireless |
1x 10/100/1000BASE-T Ethernet (RJ45) |
|
DSCP traffic marking |
|
|
Supported frequency bands (country-specific restrictions apply): |
|
|
2.4 GHz 802.11b/g/n radio |
|
|
2.412 - 2.484 GHz |
|
|
5 GHz 802.11a/n/ac radio |
|
|
5.150 - 5.250 GHz (UNII-1) |
|
|
5.250 - 5.350 GHz (UNII-2) |
|
|
5.470 - 5.600, 5.660 - 5.725 GHz (UNII-2e) |
|
|
5.725 - 5.825 GHz (UNII-3) |
|
|
1x1 with one spatial stream |
|
|
20, 40, and 80 MHz channels (802.11ac) |
|
|
Up to 256 QAM on 5 GHz band |
|
|
Integrated omnidirectional antennas (6.3 dBi gain at 5 GHz) |
|
|
MT Gateway Support for all MT sensors |
|
|
Power |
Power consumption 25.5W maximum via 802.3at PoE |
|
Environment |
Temperature: -40°C to 50°C (-40°F to 122°F)** |
|
Data and network security |
Full disk encryption (AES-256) |
|
Automatically purchased and provisioned TLS certificates (publicly signed) |
|
|
Management encryption and two-factor authentication |
|
|
Wireless security: |
|
|
WPA, WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TTLS TKIP and AES encryption |
|
|
Physical characteristics |
Dimension: 137.68mm x 67.9mm (diameter x height) |
|
Weight: 1050 grams |
|
|
Fisheye lens |
|
|
Female RJ45 Ethernet connector |
|
|
Multicolor, multifunction status LED |
|
|
External microphone switch |
|
|
Reset button |
|
|
Warranty |
Five-year hardware warranty with advanced replacement |
|
Hardware |
MV93-HW: 360° fisheye lens outdoor camera with 256 GB storage |
|
MV93M-HW: 360° fisheye lens outdoor camera with 512 GB storage |
|
|
MV93X-HW: 360° fisheye lens outdoor camera with 1 TB storage |
