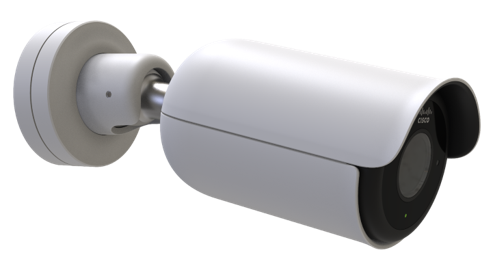

Meraki MV52 (Second Generation) Cloud Managed Fixed Dome Indoor Security Camera
Please contact Hydrasat for returning customer and premium pricing.
The MV12 series, MV22 series, MV72 series and MV32 are part of the second generation of cameras from Cisco Meraki which introduces powerful onboard analytics capabilities, including machine learning for intelligent object detection and person tracking. This new generation of smart cameras also introduces the ability to deploy wirelessly, allowing for seamless deployment in almost any environment.
The MV12 series offers several different indoor, fixed focus models that each include all the advanced analytics and other new features introduced in this generation in a smaller form factor to more easily integrate into existing environments. The MV22 and MV72 series each bring the advanced analytics and wireless capabilities of the MV12 to the full sized lineup of varifocal cameras for both indoor and outdoor models. The MV32 features the same innovative architecture as the rest of the MV family, and adds 360° viewing to provide greater context of an area.
Alongside the new analytics and wireless capabilities the second generation also introduces audio recording, 256GB or 512GB of onboard storage, and up to 3x optical zoom on the MV22 / MV72 series that can be configured and adjusted directly from the Meraki Dashboard. The MV72 series also features increased weather and impact resistance when compared to the original MV71. All second generation Meraki cameras are NDAA compliant.
Second Generation MV Cameras: Overview and Specifications
Features
|
· Managed via Meraki Dashboard |
· Selective video export capability via Meraki Cloud |
|
· Dynamic Day-Night transition with IR illumination* |
· Customizable recording and retention settings |
|
· Motion indexing with historical search |
· Always-on, Scheduled, or Motion based recording options |
|
· Motion based heatmap generation |
· Optional backups to Cloud Archive |
|
· Motion based Alerts |
· Record up to 1080p at 20fps |
|
· Historical person tracking |
· HDR recording |
|
· Direct or remote live streaming via Meraki Dashboard |
· Varifocal lens (up to 3x optical zoom) |
|
· Shared, customizable video wall via Meraki Dashboard |
· Configurable Privacy Windows |
|
· Full disk, AES-256 encryption |
· Wired / Wireless deployment |
|
· NDAA compliant |
Technical Breakdown
|
|
MV12WE |
MV12W |
MV12N |
MV22 Series |
MV72 Series |
MV32 |
MV2 |
MV52 |
|
Maximum Possible Video Quality |
Up to 1080p HD w/ H.264, up to 20fps |
Up to 1080p HD w/ H.264, up to 20fps |
Up to 1080p HD w/ H.264, up to 20fps |
MV22: Up to 1080p HD w/ H.264, up to 20fps |
MV72: Up to 1080p HD w/ H.264, up to 20fps |
Up to 4.2MP (2058x2058) with H.264, up to 15fps |
Up to 1080p HD w/ H.264, up to 20fps |
Up to 4K (8MP) video recording (3840x2160) with H.264, |
|
|
|
|
up to 15fps |
|||||
|
MV22X: Up to 4MP w/ H.264, up to 15fps |
MV72X: Up to 4MP w/ H.264, up to 15fps |
|
||||||
|
Image Sensor |
1/3” 4MP (2688x1520) progressive CMOS |
1/3” 4MP (2688x1520) progressive CMOS |
1/3” 4MP (2688x1520) progressive CMOS |
1/3” 4MP (2688x1520) progressive CMOS |
1/3” 4MP (2688x1520) progressive CMOS |
1/2.5" 8.4MP (4.2MP effective or 2058x2058) progressive CMOS |
1/3” 4MP (2688x1520) progressive CMOS |
1/1.8” 8.4MP (3840x2160) progressive CMOS image sensor |
|
Focal Length |
2.8mm |
2.8mm |
3.8mm |
3-9mm |
3-9mm |
1.19mm |
2.8mm |
12-40mm |
|
Aperture |
f/1.8 |
f/1.8 |
f/1.8 |
f/1.2-2.3 |
f/1.2-2.3 |
f/2.0 |
f/2.0 |
f/2.3-16 |
|
Shutter Speed |
1/30s - 1/32000s |
1/30s - 1/32000s |
1/30s - 1/32000s |
1/30s - 1/32000s |
1/30s - 1/32000s |
1/30s to 1/32000s |
|
1/30s to 1/1000s |
|
Field of View |
Horizontal: 114° |
Horizontal: 114° |
Horizontal: 73° |
Horizontal: 36° - 112° |
Horizontal: 36° - 112° |
Horizontal: 180° |
Horizontal: 103° |
Horizontal 12°-37°, Vertical 7°-22° |
|
Vertical: 61° |
Vertical: 61° |
Vertical: 44° |
Vertical: 20° - 57° |
Vertical: 20° - 57° |
|
Vertical: 76° |
||
|
Diagonal: 132° |
Diagonal: 132° |
Diagonal: 86° |
Diagonal: 42° - 138° |
Diagonal: 42° - 138° |
Vertical: 180° |
Diagonal: 134° |
||
|
Lens Adjustment Range |
Tilt: 65° |
Tilt: 65° |
Tilt: 65° |
Tilt: 65° |
Tilt: 65° |
|
|
|
|
Rotation: 350° |
Rotation: 350° |
Rotation: 350° |
Rotation: ±90° |
Rotation: ±90° |
||||
|
Pan: 350° |
Pan: 350° |
Pan: 350° |
Pan: 354° |
Pan: 354° |
||||
|
IR Illuminators |
Yes, up to 15m (49ft) |
Yes, up to 15m (49ft) |
Yes, up to 15m (49ft) |
Yes, up to 30m (98ft) |
Yes, up to 30m (98ft) |
Not supported |
Yes, up to 8m (26ft) |
Yes, up to 50m (164ft) |
|
Minimum illumination |
0.18 Lux / 0.01 Lux |
0.18 Lux / 0.01 Lux |
0.18 Lux / 0.01 Lux |
0.18 Lux / 0.01 Lux |
0.18 Lux / 0.01 Lux |
0.18 Lux / - |
0.18 Lux |
|
|
(Standard / Night mode) |
||||||||
|
Video Storage |
128GB high endurance solid state |
256GB high endurance solid state |
256GB high endurance solid state |
MV22: 256GB high endurance solid state |
MV72: 256GB high endurance solid state |
256GB high endurance solid state |
Live video Only |
1TB high endurance solid state |
|
|
|
|||||||
|
MV22X: 512GB high endurance solid state |
MV72X: 512GB high endurance solid state |
|||||||
|
Wireless |
802.11 |
802.11 |
802.11 |
802.11 |
802.11 |
802.11 |
802.11 |
802.11 |
|
Thermal Elements |
No |
No |
No |
No |
Yes |
No |
No |
Yes |
|
Ratings |
NDAA compliant |
NDAA Compliant |
NDAA Compliant |
IK08 vandal-resistance |
IK10 vandal-resistance |
NDAA Compliant |
NDAA Compliant |
IK10 vandal-resistance |
|
|
|
|
||||||
|
NDAA compliant |
IP67 weather-proofing |
IP67 weather-proofing |
||||||
|
|
|
|
||||||
|
|
NDAA compliant |
NDAA Complaint |
Wireless Radio
|
|
MV12WE/W/N / MV22 / MV72 / MV32/ MV2 / MV52 |
|
Radios |
2.4 GHz 802.11b/g/n |
|
|
|
|
5 GHz 802.11a/n/ac |
|
|
Antenna |
Integrated 1x1 MU-MIMO Omnidirectional |
|
|
|
|
(4.4 dBi gain at 2.4 GHz, 6.3 dBi gain at 5 GHz) |
|
|
Channel Width |
20, 40, and 80 MHz channels |
|
Supported Frequencies |
2.412 - 2.484 GHz |
|
|
|
|
5.150 - 5.250 GHz (UNII-1) |
|
|
|
|
|
5.250 - 5.350 GHz (UNII-2) |
|
|
|
|
|
5.470 - 5.600, 5.660 - 5.725 GHz (UNII-2e) |
|
|
|
|
|
5.725 - 5.825 GHz (UNII-3) |
|
|
QAM |
Up to 256 QAM on both 2.4 GHz and 5 GHz bands |
|
802.11 Security |
WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, EAP-TTLS, TKIP and AES encryption, NDAA Compliance. |
Physical
|
|
MV12 Series |
MV22 Series |
MV72 Series |
MV32 |
MV2 |
MV52 |
|
Mount Type (out-of-box) |
Wall / Ceiling Mount |
Wall / Ceiling Mount |
Wall / Ceiling Mount (conduit adapter included) |
Ceiling Mount |
Table Top, Wall / Ceiling Mount |
Wall / Ceiling Mount |
|
|
||||||
|
Supported Mount Accessories |
Wall Mount Arm, Telescoping Pendant Mount |
L-Shape Wall Mount Bracket, T-Rail Mount Clip |
Wall Mount Arm, Pole Mount |
Telescoping Pendant Mount, Wall Mount Arm (but not recommended) |
|
Pole Mount |
|
Dimensions (dia x h) |
4.2 x 2.9 in / |
5.9 x 3.8 in / |
6.5 x 4.0 in / |
4.2 in x 1.8 in / |
76mm x 68-129mm (diameter x height) |
90mm x 145mm |
|
|
|
|
|
|||
|
106 x 74 mm |
149 x 97 mm |
165 x 103 mm |
106mm x 45.86mm |
|||
|
Weight |
0.63 lb / 0.28kg |
1.8 lb / 0.84 kg |
3.0 lb /1.35 kg |
0.47 lb / 215 g |
1.03 lb / 0.46kg |
3.3 lb / 1.5 kg |
|
Power Supply |
802.3af PoE |
802.3af PoE |
802.3at PoE+ |
802.3af PoE |
10W DC/ 802.3af PoE |
12V DC/ 802.3at PoE+ |
|
Power Load (max) |
12.95W |
12.75W |
23.4W (802.3at) |
12.95W |
12.95W |
25.5W |
|
Operating Temperature (starting / working) |
0°C - 40°C (32°F - 104°F) / |
0°C - 45°C (32°F - 113°F) / |
-40°C - 50°C (-40°F - 122°F) / |
0°C - 40°C (32°F - 104°F) / |
0°C - 35°C (32°F - 95°F) / |
40°C - 50°C (-40°F - 122°F) |
|
|
|
|
|
|
||
|
0°C - 40°C (32°F - 104°F) |
0°C - 45°C (32°F - 113°F) |
0°C - 50°C (32°F - 122°F) |
0°C - 40°C (32°F - 104°F) |
0°C - 35°C (32°F - 95°F) |
