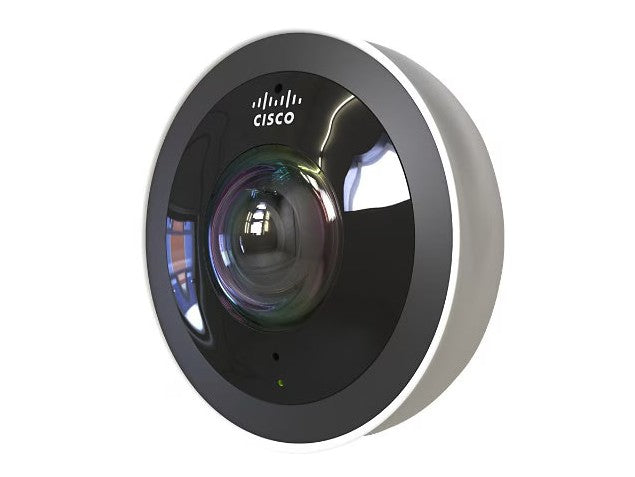

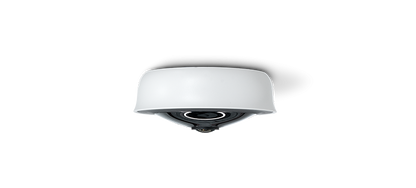

Meraki MV33 360° View Cloud Managed Indoor Security Camera
MV33 Datasheet
The Meraki MV33 delivers 12.4 MP image quality and combines physical security features with advanced analytics. This compact mini fisheye camera is easy to install and has a fixed lens with a 360° field of view. MV33 offers full visibility and smart security for many indoor applications. Great for those areas that require a few of multiple angles without the need of multiple cameras.
Security That Tells a Complete Story
Up to 2880x2880 video resolution and 360-degree views, the ultra-high-performance MV33 camera captures the full picture, providing broad context and clear detail when needed. This panoramic overview increases situation awareness, making surveillance more efficient.
Compact and easy to install, MV33 camera boasts a new universal mounting place compatible with various mounting accessories; the MV33 camera can be installed in various deployment scenarios so that you can see around every corner. The 360° field of view makes it ideal for improving safety and security for a wide range of use cases.
MV33 Series Datasheet
MV Family Datasheet
Product Highlights
|
· 360° fisheye lens camera with 12.4MP Image Sensor |
· Digital Pan-Tilt-Zoom (DPTZ) mode for live & historical video |
|
· Compact form factor with 180° horizontal and vertical FoV |
· Machine learning capability for intelligent object detection |
|
· A large level of detail with up to 2880x2880 video resolution |
· Role-based user accounts provide secure video access and ensure privacy |
|
· Low bandwidth Consumption for recording and streaming using Smartcodec encoding |
· Cloud-augmented edge storage for minimal physical infrastructure |
|
· Guaranteed days of video with Smart Retention |
· Built-in automatic security with secure boot and signed firmware, backed by a hardware security chip |
|
· Intelligent motion indexing with search engine |
· Suitable for deployments of all sizes, 1-10,000+ cameras |
|
· Built-in search tools like motion search, motion recap, motion heatmaps and Event Search. |
· NDAA Compliant |
|
· Built-in analytics like Line Crossing, Area Occupancy, MV sense and Custom Computer-Vision capabilities |
Technical Breakdown
|
Category |
Specifications |
|
Camera |
1/2.3” 12.4MP (4072x3046) progressive CMOS Backlit image sensor |
|
High-performance fisheye lens |
|
|
256GB high-endurance solid-state storage (MV33) |
|
|
512GB high-endurance solid-state storage (MV33M) |
|
|
1.6 mm focal length |
|
|
f/2.0 aperture |
|
|
Field of view: horizontal 180°, vertical 180° |
|
|
1/30 second to 1/32,000 second shutter speed |
|
|
Video |
8MP video recording (2880x2880) with H.264 Smart Codec, up to 15 fps |
|
4.2MP (2112x2112) 360° overview with H.264 Smart Codec, up to 24 fps |
|
|
1MP (1080x1080) 360° overview with H.264 Smart Codec, up to 24fps |
|
|
Cloud-augmented edge storage (locally stored video; metadata in the cloud) |
|
|
Optimized retention settings (scheduling, motion-based) for variable retention |
|
|
Direct live streaming with no client software (native browser playback)* |
|
|
Stream video anywhere with automatic cloud proxy |
|
|
Audio recording supported with three (3) built-in microphones |
|
|
DORI Specifications |
Detect (25 ppm/ 8 ppf) |
|
Observe (63 ppm/ 19 ppf) |
|
|
Recognize (125 ppm/ 38 ppf) |
|
|
Identify (250 ppm/ 76 ppf) |
|
|
Networking and wireless |
1x 10/100/1000BASE-T Ethernet (RJ45) |
|
DSCP traffic marking |
|
|
Supported frequency bands (country-specific restrictions apply): |
|
|
2.4 GHz 802.11b/g/n radio |
|
|
|
|
|
2.412 - 2.484 GHz |
|
|
5 GHz 802.11a/n/ac radio |
|
|
|
|
|
5.150 - 5.250 GHz (UNII-1) |
|
|
5.250 - 5.350 GHz (UNII-2) |
|
|
5.470 - 5.600, 5.660 - 5.725 GHz (UNII-2e) |
|
|
5.725 - 5.825 GHz (UNII-3) |
|
|
1x1 with one spatial stream |
|
|
20, 40, and 80 MHz channels (802.11ac) |
|
|
Up to 256 QAM on 5 GHz band |
|
|
Integrated omnidirectional antennas (6.3 dBi gain at 5 GHz) |
|
|
MT Gateway Support for all MT sensor |
|
|
Power |
Power consumption 12.95W maximum via 802.3af PoE |
|
Environment |
Temperature: 0°C to 40°C (32°F - 104°F) |
|
Data and network security |
Full disk encryption (AES 256-bit) |
|
Automatically purchased and provisioned TLS certificates (publicly signed) |
|
|
Management encryption and two-factor authentication |
|
|
Wireless security: |
|
|
WPA, WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TTLS TKIP and AES encryption |
|
|
Physical characteristics |
Dimension: 120.66mm x 49.8mm (diameter x height) |
|
Weight: 330 grams |
|
|
Fisheye lens |
|
|
Ethernet Connector with RJ45 Interface |
|
|
Multicolor, multifunction status LED |
|
|
External microphone switch |
|
|
Reset button |
|
|
Warranty |
Five-year hardware warranty with advanced replacement |
|
Hardware |
MV33-HW: 360° fisheye lens Indoor camera with 256 GB storage |
|
MV33M-HW: 360° fisheye lens Indoor camera with 512 GB storage |
