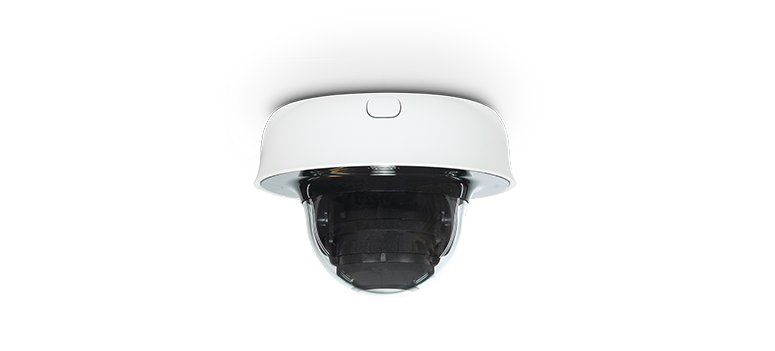

Meraki MV13M Cloud Managed Fixed Dome Indoor Security Camera
MV13 Datasheet
The Cisco Meraki MV smart camera family brings simplicity and data-powered intelligence to the world of physical security. Every MV model comes with a powerful processor—the same kind found in many of today’s smartphones—and an innovative architecture that minimizes physical infrastructure as well as software requirements.
The Meraki MV13 offers 8MP image quality and combines physical security and advanced analytics in a powerful yet compact fixed-lens mini dome form factor. With an edge architecture that minimizes physical infrastructure and software requirements, MV13 enables faster, easier deployments and greater scalability.
Security in High Definition
The ultra-high-performance MV13 camera supports up to 4K resolution for high-definition video and with IR illumination, delivering the level of detail needed to stay on top of what matters the most.
Compact and easy to install, MV13 camera boasts a new universal mounting place compatible with various mounting accessories, delivering the right viewing angle wherever they are placed. MV13 cameras are ideal for monitoring entrances, exits, and the general perimeter from walls, ceilings, or corner-mount locations.
Using machine-learning-based computer vision, MV13 cameras can perform real-time object detection, classification, and tracking of people and vehicles, as well as attribute detection and search to increase safety and provide valuable insights into activity. These smart cameras deliver powerful business intelligence without compromising physical security.
Product Highlights
|
· Fixed lens mini-dome camera with 8MP Image Sensor |
· Machine-learning capability for intelligent object detection |
|
· Compact form factor with 101.3° horizontal FoV |
· Secure video access to ensure privacy with role-based user accounts |
|
· More detailed information with up to 4K resolution |
· Cloud-augmented edge storage for minimal physical infrastructure |
|
· Low bandwidth Consumption for recording and streaming using Smartcodec encoding |
· Built-in automatic security with secure boot and signed firmware, backed by a hardware security chip |
|
· Guaranteed days of video with Smart Retention |
· Suitable for deployments of all sizes, from 1-10,000+ cameras |
|
· Night vision with IR illumination up to 15m (49 ft) |
· NDAA Compliant |
|
· Intelligent motion indexing with search engine |
· Built-in analytics like Line Crossing, Area Occupancy, MV sense and Custom Computer-Vision capabilities |
|
· Built-in search tools like motion search, motion recap, motion heatmaps and Attribute Search. |
Technical Breakdown
|
Category |
Specifications |
|
Camera |
· 1/2.8” 8.41MP (3854x2176) progressive CMOS backlit image sensor |
|
· 256 GB high-endurance solid-state storage (MV13) |
|
|
· 512 GB high-endurance solid-state storage (MV13M) |
|
|
· 3.3 mm focal length |
|
|
· f/2.0 aperture |
|
|
· Field of view: Diagonal: 119.7, Horizontal:101.3, Vertical: 54.4 |
|
|
· 1/30 second to 1/32,000 second shutter speed |
|
|
· Auto day/night capable |
|
|
· Built-in IR illuminators, effective up to 15m (49 ft) |
|
|
Video |
· 4K video recording (3840x2160) with H.264 Smart Codec, up to 15 fps |
|
· 4MP (2560 x 1440) with H.264 Smart Codec, up to 24 fps |
|
|
· 1080p (1920x1080) with H.264 Smart Codec, up to 24fps |
|
|
· Cloud-augmented edge storage (locally stored video, metadata in the cloud) |
|
|
· Optimized retention settings (scheduling, motion-based) for variable retention |
|
|
· Direct live streaming with no client software (native browser playback)* |
|
|
· Stream video anywhere with automatic cloud proxy |
|
|
· Audio recording supported with three (3) built-in microphones |
|
|
DORI Specifications (Maximum Resolution) |
· Detect (25 ppm/ 8 ppf) |
|
· 86.9 m / 285.1 ft |
|
|
· Observe (63 ppm/ 19 ppf) |
|
|
· 34.5 m / 113.1 ft |
|
|
· Recognize (125 ppm/ 38 ppf) |
|
|
· 17.4 m / 57.1 ft |
|
|
· Identify (250 ppm/ 76 ppf) |
|
|
· 8.7 m / 28.5 ft |
|
|
Networking and wireless |
· 1x 10/100/1000BASE-T Ethernet (RJ45) |
|
· DSCP traffic marking |
|
|
· Supported frequency bands (country-specific restrictions apply): |
|
|
· 2.4 GHz 802.11b/g/n radio |
|
|
· 2.412 - 2.484 GHz |
|
|
· 5 GHz 802.11a/n/ac radio |
|
|
· 5.150 - 5.250 GHz (UNII-1) |
|
|
· 5.250 - 5.350 GHz (UNII-2) |
|
|
· 5.470 - 5.600, 5.660 - 5.725 GHz (UNII-2e) |
|
|
· 5.725 - 5.825 GHz (UNII-3) |
|
|
· 1x1 with one spatial stream |
|
|
· 20, 40, and 80 MHz channels (802.11ac) |
|
|
· Up to 256 QAM on 5 GHz band |
|
|
· Integrated omnidirectional antennas (6.3 dBi gain at 5 GHz) |
|
|
· MT Gateway Support for all MT sensors |
|
|
Power |
· Power consumption 12.95W maximum via 802.3af PoE |
|
Environment |
· Temperature: 0°C to 40°C (32°F - 104°F) |
|
Data and network security |
· Full disk encryption (AES 256-bit) |
|
· Automatically purchased and provisioned TLS certificates (publicly signed) |
|
|
· Management encryption and two-factor authentication |
|
|
· Wireless security: |
|
|
· WPA, WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TTLS TKIP and AES encryption |
|
|
Physical characteristics |
· Dimension: 120 mm x 83.5 mm (diameter x height) |
|
· Product Weight: 430 grams |
|
|
· Fixed lens |
|
|
· Ethernet Connector with RJ45 Interface |
|
|
· Multicolor, multifunction status LED |
|
|
· External microphone switch |
|
|
· Reset button |
|
|
Warranty |
· Five-year hardware warranty with advanced replacement |
|
Hardware |
· MV13-HW: Fixed lens indoor mini-dome camera with 256 GB storage |
|
· MV13M-HW: Fixed lens indoor mini-dome camera with 512 GB storage |
