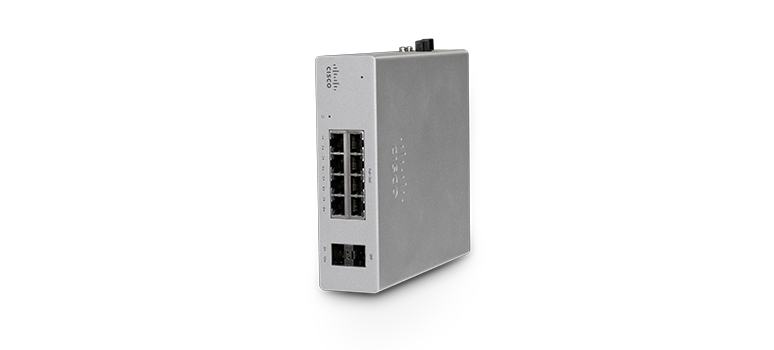

Meraki MS130R-8P Network Switch
MS130R Datasheet
Cisco Meraki MS130R extends reliable and secure layer 2 connectivity to ruggedized environments. The MS130R provides up to 240W of PoE and IP30 protection, making it perfect for connecting outdoor access points, cameras, and devices in extreme temperatures (-40°C to 70°C or -40°F to 158°F) and tight spaces.
Designed for adapting to non-traditional environments, the diverse mounting and power options offer deployment flexibility. The powerful Meraki cloud-native platform enables seamless and remote deployment and management of entire Meraki product suite through one centralized dashboard.
Meraki MS130 Family Datasheet - Cloud-Managed Security and SD-WAN
Features
|
· Extended Operating Temperature Range |
· IPv4/6 ACL support |
|
· Flexible Powering Options |
· 802.1Q VLAN tagging |
|
· Rack, Wall, and DIN rail mounting options |
· DHCP Snooping |
|
· Managed via Cisco Meraki Dashboard |
· 802.1X Authentication |
|
· Remote Packet Capture Tools via Meraki Dashboard |
· 10/100/1000 Mbps RJ45 |
|
· Automatic Firmware upgrades |
· 802.3bt PoE up to 30W per port |
|
· SNMP/Syslog Integration |
|
|
|
MS130R-8P |
|
1Gbe RJ45 |
8 |
|
1GbE SFP |
2 |
|
Dedicated Mgmt Interface |
- |
|
PoE Type |
802.3bt * |
|
PoE Port Budget |
30W * |
|
PoE Switch Budget |
240W |
|
Power Input |
50-54VDC, 5.6A |
|
Power Load (idle/max) |
12W/257W |
|
Power Consumption |
12W-257W |
|
Operating Temperature |
|
|
Storage and Transportation Temperature |
-40°F - 185 °F |
|
Humidity |
5% to 95% |
|
Mounting |
Desktop, Wall mount, DIN rail options |
|
Switching Capacity |
20Gbps |
|
Power Supply |
External AC Adapter or DIN rail AC power supply options |
|
Fan Operation |
Fanless |
|
Dimensions (h x w x d) |
1.75 x 6.18 x 6.69in |
|
Weight |
2.12 lb (0.96 kg) |
* Note: This model uses and understands IEEE 802.3bt-2018 PoE negotiation and capabilities but is limited to 30W per port PoE budget.
Operating temperature limitations
|
Installation Environment |
Fan/blower equipped enclosure |
Vented enclosure |
Sealed enclosure |
Desktop |
|
Ventilation |
200 LFM |
40 LFM |
0 LFM |
40 LFM |
|
Operating Temperature Limits |
-40°F - 158°F |
-40°F to 149°F |
-40°F to 140°F |
Vertical -40°C to 60°C |
