Hydrasat

MS130-8P

MS130-8P

$678.99 USD
$1,429.29 USD $678.99 USD
Sale Sold out

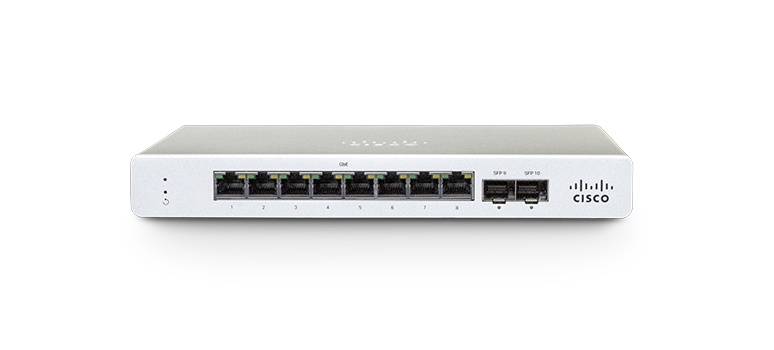

Meraki MS130-8P Network Switch

Please contact Hydrasat for returning customer and premium pricing.

Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options designed to meet the diverse needs of branch and campus deployments.

With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.

Meraki MS130 Family Datasheet - Cloud-Managed Security and SD-WAN

Features

·         Managed via Cisco Meraki Dashboard

·         DHCP Snooping

·         Remote Packet Capture Tools via Meraki Dashboard

·         802.1X Authentication

·         Automatic Firmware upgrades

·         10/100/1000 Mbps RJ45

·         SNMP/Syslog Integration

·         100M/1G/2.5G mGbE RJ45

·         IPv4/6 ACL support

·         4x 10 Gbe SFP+ models available

·         802.1Q VLAN tagging

·         802.3bt PoE up to 30W per port





MS130-8

MS130-8P

MS130-8P-I

MS130-8X

MS130-12X

1Gbe RJ45

8

8

8

6

8

mGbe RJ45 (100M/1G/2.5G)

-

-

-

2 x 2.5G

4 x 2.5G

1 Gbe SFP

2

2

2

-

-

10GbE SFP+

-

-

-

2

2

Dedicated Mgmt Interface

-

-

-

-

-

PoE Type

-

802.3bt

802.3bt

802.3bt

802.3bt

PoE Port Budget

-

30W

30W

30W

30W

PoE Switch Budget

-

120W

120W

120W

240W

Power Input

12VDC, 2.5A

54VDC, 2.78A

100-240V~, 2.8A-1.2A, 50-60Hz

54VDC, 2.78A

54VDC, 5.56A

Power Load (idle/max)

8W/8W

8W/128W

8W/128W

16W/136W

19W/260W

Operating Temperature

32°F - 113 °F
0°C - 45°C

32°F - 113 °F
0°C - 45°C

32°F - 113 °F
0°C - 45°C

32°F - 113 °F
0°C - 45°C

32°F - 113 °F
0°C - 45°C

Storage and Transportation Temperature

-4°F - 158 °F

-4°F - 158 °F

-4°F - 158 °F

-4°F - 158 °F

-4°F - 158 °F

-20°C - 70°C

-20°C - 70°C

-20°C - 70°C

-20°C - 70°C

-20°C - 70°C

Humidity

5% to 95%

5% to 95%

5% to 95%

5% to 95%

5% to 95%

Mounting

Desktop
Integrated Wall mount

Desktop
Integrated Wall mount

Desktop
Integrated Wall mount

Desktop
Integrated Wall mount

Desktop
Integrated Wall mount

Switching Capacity

20 Gbps

20 Gbps

20 Gbps

62 Gbps

76 Gbps

Power Supply

External

External

Internal

External

External

Fan Operation

Fanless

Fanless

Fanless

Fixed Internal

Fixed Internal

Dimensions
(h x w x d)

1.1 x 8.74 x 6in
(2.8 x 22.2 x 15cm)

1.1 x 8.74 x 6in
(2.8 x 22.2 x 15cm)

1.75 x 9 x 8.58in
(4.4 x 23 x 23cm)

1.75 x 9 x 8.58in
(4.4 x 23 x 23cm)

1.75 x 9 x 8.58in
(4.4 x 23 x 23cm)

Weight

1.94 lb (0.88 kg)

1.94 lb (0.88 kg)

2.86 lb (1.3 kg)

2.12 lb (0.96 kg)

2.34 lb (1.06 kg)
