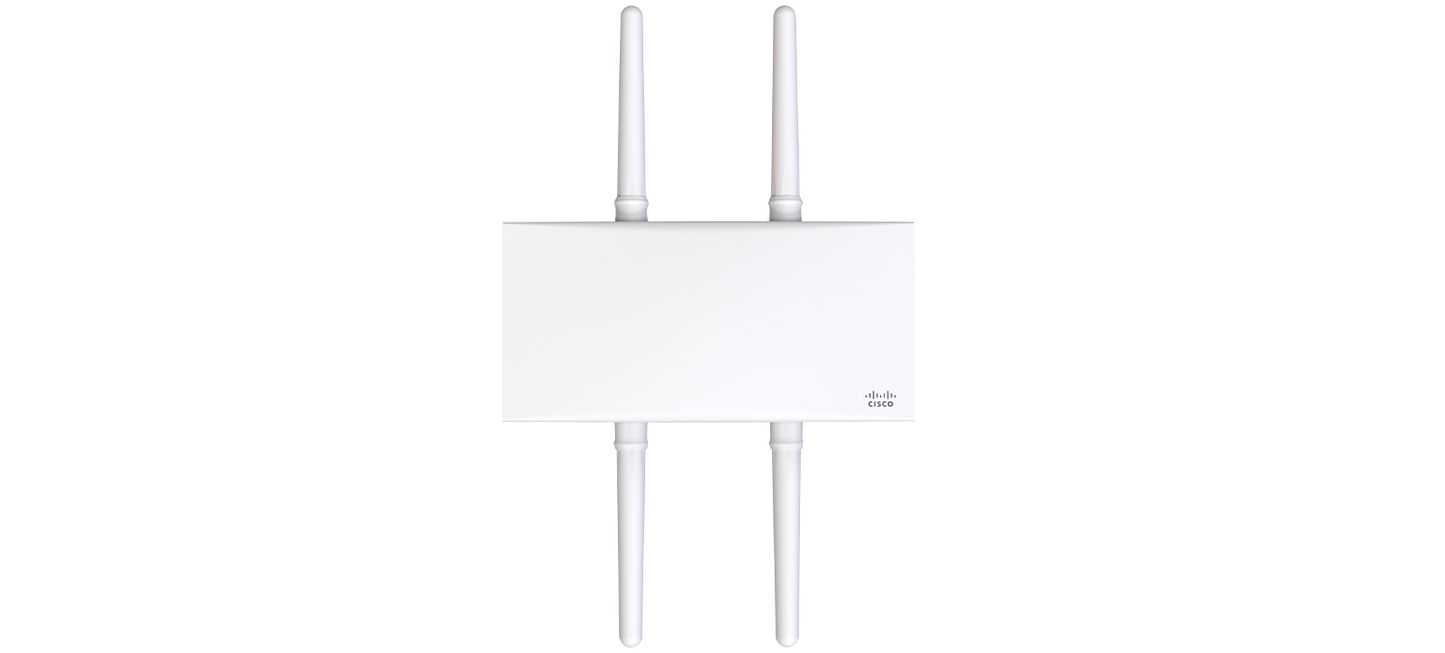

Meraki MR86 WiFi 6 Outdoor AP

Please contact Hydrasat for returning customer and premium pricing.

Entry Level Cloud Managed Outdoor Wi-Fi 6 Access Point

The Cisco Meraki MR78 is a Dual-band, 802.11ax, 2x2:2, cloud managed entry level outdoor Access Point. Designed for basic, medium-density deployments, the MR78 provides enterprise grade security and simple management in a ruggedized IP67-rated form factor.

The MR78 provides a maximum of 1.5 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios.

With the combination of cloud management, high performance hardware, multiple radios, and advanced software features, enterprise-grade security, the MR78 makes an outstanding platform to provide reliable Wi-Fi for small business and home office networks that want reliable and secure wireless connectivity.

MR78 Datasheet



MR78 and Meraki Cloud Management

Management of the MR78 is performed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without time-consuming training or costly certifications. Because the MR78 is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff.

24x7 monitoring via the Meraki cloud delivers real-time alerts if a network encounters problems. Remote diagnostic tools enable immediate troubleshooting over the web so that distributed networks can be managed with a minimum of hassle.

The MR78’s firmware is automatically kept up to date via the cloud. New features, security fixes, and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.



Product Highlights

·         2x2:2 MU-MIMO 802.11ax

·         1.5* Gbps dual-radio aggregate frame rate

·         Enhanced transmit power and receive sensitivity

·         Integrated enterprise security and guest access

·         Application-aware traffic shaping

·         Optimized for voice and video

·         Self-configuring, plug-and-play deployment



Product Features

·         Dual–radio aggregate frame rate of up to 1.5 Gbps*

·         Multi User Multiple Input Multiple Output (MU-MIMO)

·         Bluetooth Low Energy Beacon and scanning radio

·         Automatic cloud-based RF optimization

·         Integrated enterprise security and guest access

·         Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

·         Application-aware traffic shaping

·         Voice and video optimizations

·         Self-configuring, self-maintaining, always up-to-date

·         Advanced analytics





Product Specifications

Category

Specifications

Radios
  • 2.4 GHz 802.11b/g/n/ax client access radio
  • 5 GHz 802.11a/n/ac/ax client access radio
  • 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio
  • 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
  • Concurrent operation of all four radios
  • Supported frequency bands (country-specific restrictions apply):
    • 2.401 - 2.484 GHz
    • 5.150 - 5.250 GHz (UNII-1)
    • 5.250-5.350 GHZ (UNII-2A)
    • 5.490 - 5.730 GHz (UNII-2C)
    • 5.735 - 5.825 GHz (UNII-3)

Antenna
  • List of compatible antennas: MA-ANT-20/25/27 and AIR-ANT2513P4M-N=

Antennas are not included, please see "Ordering Information"

802.11ax, 802.11ac Wave 2 and 802.11n Capabilities
  • DL-OFDMA**, UL-OFDMA**, TWT support**, BSS Coloring**
  • 4 x 4 multiple input, multiple output (MIMO) with four spatial streams
  • SU-MIMO, UL MU-MIMO** and DL MU-MIMO support
  • Maximal ratio combining (MRC) & beamforming
  • 20 and 40 MHz* channels (802.11n); 20, 40*, and 80 MHz channels (802.11ac Wave 2); 20, 40* and 80 MHz channels (802.11ax)

Note: *40MHz channels are supported only in the 5GHz band.

  • Up to 1024-QAM on both 2.4 GHz & 5 GHz bands
  • Packet aggregation

Power
  • Power over Ethernet: 42.5 - 57 V (802.3at compatible)
  • Power consumption: 30W max (802.3at required)
  • Power over Ethernet injector sold separately

Note: Actual power consumption may vary depending on the AP usage.

Interfaces
  • 1x 100/1000/2.5G BASE-T Ethernet (RJ45)

Mounting
  • All standard mounting hardware included
  • Mounts to walls and vertical poles.

Physical Security
  • Two security screws
  • Concealed mount plate with anti-tamper cable bay

Environment
  • Operating and storage temperature: -40 °F to 131 °F (-40 °C to 55 °C)
  • Operating and storage humidity: 5 to 95% non-condensing
  • Operating and storage altitude: Up to 40,000 feet (12,192 meters)
  • IP67 Environmental rating

Reliability
  • Mean Time Between Failure (MTBF): 1,566,656hrs at +25°C operating temperature

Physical Dimensions
  • 11.81” x 6.02” x 2.16” (30.0 cm X 15.3 cm X 5.5 cm), not including cable gland, mounts or antennas
  • Weight: 1.5 kg

Security
  • Integrated Layer 7 firewall with mobile device policy management
  • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
  • Flexible guest access with device isolation
  • VLAN tagging (802.1q) and tunneling with IPsec VPN
  • PCI compliance reporting
  • WEP***, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal**, WPA3 - Enterprise**, WPA3 - Enhanced Open (OWE)**
  • EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
  • TKIP and AES encryption
  • Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
  • Cisco ISE integration for Guest access and BYOD Posturing

Quality of Service
  • Advanced Power Save (U-APSD)
  • WMM Access Categories with DSCP and 802.1p support
  • Layer 7 application traffic identification and shaping

Mobility
  • PMK, OKC, & 802.11r for fast Layer 2 roaming
  • Distributed or centralized layer 3 roaming

Analytics
  • Embedded location analytics reporting and device tracking
  • Global L7 traffic analytics reporting per network, per device, & per application
