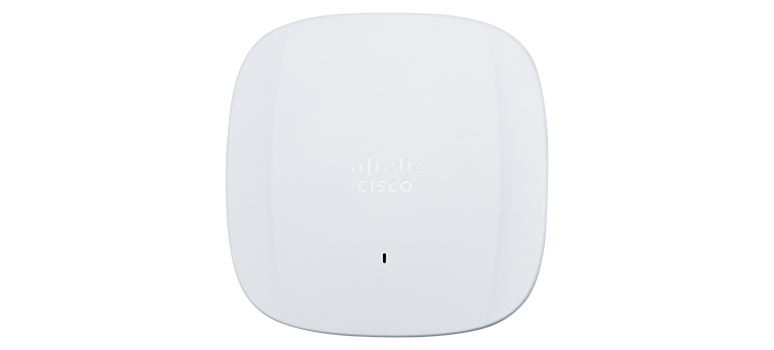

Meraki MR57 WiFi 6 Indoor AP

MR57 Datasheet

Ultra-High-Performance Wi-Fi 6E wireless

Tri-band 802.11ax-compatible access point with separate radios dedicated to security, RF management, and Bluetooth® coupled with dual Ethernet ports and a USB port for added connectivity options.

MR57 Datasheet



Software configurable flex radio architecture for 6 GHz support

MR57 supports a software defined flex radio which can be toggled between a 5 GHz and 6 GHz. This provides an option to operate MR57 in either a dual 5 GHz configuration or a true tri-band configuration. Tri-band configuration unlocks the use of new spectrum in the 6 GHz frequency range which provides additional channels to increase throughput and reduce interference and noise from legacy devices. 6 GHz support ensures that the MR57 supports future technologies.



High Performance 802.11ax compatible wireless

The Cisco Meraki MR57 is a cloud-managed 4x4:4 802.11ax compatible access point that raises the bar for wireless performance and efficiency. Designed for next-generation deployments in offices, schools, hospitals, retail shops, and hotels, the MR57 offers high throughput, enterprise-grade security, and simple management. The MR57 provides a maximum of 7.78 Gbps* aggregate frame rate with concurrent 2.4 GHz, 5 GHz and 6 GHz radios. A dedicated fourth radio provides real-time WIDS/WIPS with automated RF optimization, and a fifth integrated IoT radio delivers Bluetooth scanning and beaconing. With the combination of cloud management, high-performance hardware, multiple radios, and advanced software features, the MR57 makes an outstanding platform for the most demanding of uses—including high-density deployments and bandwidth or performance-intensive applications like voice (Cisco WebEx) and high-definition video.



Support for dual Ethernet ports to enable high availability

MR57 will support dual 5 Gigabit mGig Ethernet ports for high availability or for link aggregation. These ports can also be used for power-sharing to power up the AP and fully support the required functionality. The secondary Ethernet port can also be used for power and data sharing* or in a high availability mode* for added resiliency.

Minimum firmware support for Dual Uplink High Availability is MR30.1.



MR57 and Meraki cloud management

Management of the MR57 is through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without time-consuming deployment complexity and time consuming staging process. Since the MR57 is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff. 24x7 monitoring via the Meraki cloud delivers real-time alerts if the network encounters problems. Remote diagnostic tools enable immediate troubleshooting over the web so that distributed networks can be managed with a minimum of hassle. New features, bug fixes, and enhancements are delivered seamlessly over from the dashboard.



Product Highlights

  • Four 4:4 MU-MIMO 802.11ax compatible
  • 7.78 Gbps tri-radio aggregate frame rate
  • 24x7 real-time WIDS/WIPS and spectrum analytics via dedicated fourth radio
  • Integrated Bluetooth Low Energy beacon and scanning radio
  • Dual 5 Gbps mGig ethernet port support
  • USB 2.0 host interface (Type A connector) with 9.5W power budget
  • Enhanced transmit power and receive sensitivity
  • Full-time Wi-Fi location tracking via dedicated third radio
  • Integrated enterprise security and guest access
  • Application-aware traffic shaping
  • Optimized for voice and video
  • Self-configuring, plug-and-play deployment



Product Features

·         Dual–radio aggregate frame rate of up to 7.78 Gbps*

·         Multi User Multiple Input Multiple Output (MU-MIMO)

·         Dedicated third radio delivers 24x7 wireless security and RF analytics

·         Bluetooth Low Energy Beacon and scanning radio

·         Automatic cloud-based RF optimization

·         Integrated enterprise security and guest access

·         Dedicated Scanning Radio Delivers 24x7 Air Marshal and RF analytics

·         Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

·         Application-aware traffic shaping

·         Voice and video optimizations

·         Self-configuring, self-maintaining, always up-to-date

·         Meraki Health





Product Specifications

Category

Specifications

Radios
  • 2.4 GHz 802.11b/g/n/ax client access radio
  • 5 GHz 802.11a/n/ac/ax client access radio
  • 6 GHz 802.11ax client access radio
  • 2.4 GHz, 5 GHz, and 6 GHz tri-band Air Marshal WIDS/WIPS, spectrum analysis, & location analytics radio
  • 2.4 GHz Bluetooth Low Energy radio with beacon and scanning support concurrent operation of all five radios

Antenna
  • Integrated omni-directional antennas (4.5 dBi gain at 2.4 GHz, 5.5 dBi gain at 5 GHz, and 5.5 dBi gain at 6GHz)

802.11ax, 802.11ac Wave 2 and 802.11n capabilities
  • DL-OFDMA, TWT support, BSS coloring*
  • 4 x 4 multiple input, multiple output (MIMO) with four spatial streams on 6 GHz
  • 4 x 4 multiple input, multiple output (MIMO) with four spatial streams on 5 GHz
  • 4 x 4 multiple input, multiple output (MIMO) with four spatial streams on 2.4 GHz
  • SU-MIMO, UL and DL MU-MIMO support
  • Maximal ratio combining (MRC) & beamforming
  • 20 and 40 MHz* channels (802.11n); 20, 40*, and 80 MHz channels (802.11ac Wave 2); 20, 40* and 80 MHz channels (802.11ax

Note: *40MHz channels are supported only in 5 & 6 GHz bands.

  • Up to 1024-QAM on all three - 2.4 GHz, 5 GHz, and 6 GHz bands
  • Packet aggregation

Power
  • Power over Ethernet: 42.5 - 57V (PoE+ and 802.3bt compliant)
  • Alternative 54V DC input via DC adapter
  • Power consumption: 30W to 40W (802.3bt)
  • Minimum power requirement: 30W (PoE+, USB is disabled)
  • Maximum power consumption: 40W
  • Power over Ethernet injector and DC adapter sold separately.

Note: Actual power consumption may vary depending on the AP usage.

Interfaces
  • 2x 100/1000/2.5G/5G BASE-T Ethernet (RJ45)
  • 1x DC power connector (5.5 mm x 2.5 mm, center positive)

Mounting
  • All standard mounting hardware included (AIR-AP-BRACKET-2)
  • Desktop, ceiling, and wall mount capable
  • Ceiling tile rail (9/16, 15/16, or 1 ½” flush or recessed rails), assorted cable junction boxes

Physical Security
  • Kensington lock slot
  • Concealed mount plate with anti-tamper cable bay

Environment
  • Operating temperature: 32 °F - 104 °F (0 °C - 40 °C)
  • Humidity: 5% to 95% non-condensing

Reliability
  • Mean time between failure (MTBF): 998,440 hrs at +25° C operating temperature

Physical Dimensions
  • 260 mm x 260 mm x 56 mm, including desk-mount feet or mount plate
  • Weight: 1.7 kg

Security
  • Integrated layer 7 firewall with mobile device policy management
  • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
  • Flexible guest access with device isolation
  • VLAN tagging (802.1q) and tunneling with IPsec VPN
  • PCI compliance reporting
  • WEP*, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal*, WPA3 - Enterprise*, WPA3 - Enhanced Open (OWE)*
  • EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
  • TKIP and AES encryption
  • Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
  • Cisco ISE integration for guest access and BYOD posturing

Quality of Service
  • Advanced power save (U-APSD)
  • WMM access categories with DSCP and 802.1p support
  • Layer 7 application traffic identification and shaping

Mobility
  • PMK, OKC, and 802.11r for fast layer 2 roaming
  • Distributed or centralized layer 3 roaming

Analytics
  • Embedded location analytics reporting and device tracking
  • Global layer 7 traffic analytics reporting per network, per device, and per application



View full details
