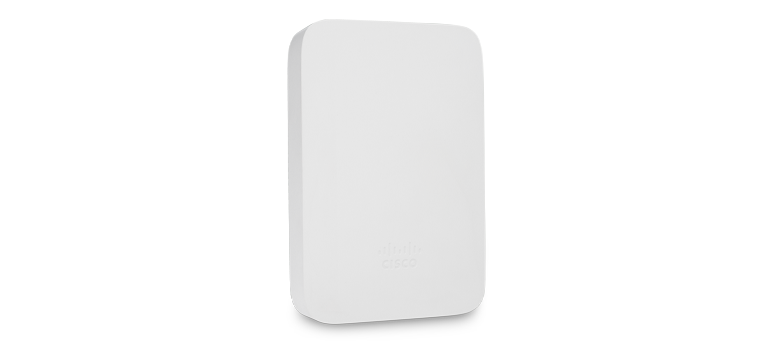

MR36H

·         2x2:2 MU-MIMO 802.11ax

·         1.5* Gbps dual-radio aggregate frame rate

·         3 wired access ports and a Passthrough port integrated.

·         24x7 real-time WIDS/WIPS and spectrum analytics via dedicated third radio

·         Integrated Bluetooth Low Energy Beacon

·         Integrated scanning radio

·         Enhanced transmit power and receive sensitivity

·         Integrated enterprise security and guest access

·         Application-aware traffic shaping

·         Optimized for voice and video

·         Self-configuring, plug-and-play deployment

·         Sleek design blends into office environments

·         Full-time Wi-Fi location tracking via dedicated 3rd radio

Category

Specifications

Radios

·                     2.4 GHz 802.11b/g/n/ax client access radio

·                     5 GHz 802.11a/n/ac/ax client access radio

·                     2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio

·                     2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support

·                     Concurrent operation of all four radios

·                     Supported frequency bands (country-specific restrictions apply):

o        2.401 - 2.484 GHz

o        5.150 - 5.250 GHz (UNII-1)

o        5.250 - 5.350 GHZ (UNII-2)

o        5.490 - 5.730 GHz (UNII-2C)

o        5.735 - 5.825 GHz (UNII-3)

Antenna

·                     Internal Antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)

802.11ax, 802.11ac Wave 2 and 802.11n Capabilities

·                     DL-OFDMA**, UL-OFDMA**, TWT support**, BSS Coloring**

·                     2 x 2 multiple input, multiple output (MIMO) with two spatial streams

·                     SU-MIMO, UL MU-MIMO** and DL MU-MIMO support

·                     Maximal ratio combining (MRC) & beamforming

·                     20 and 40 MHz* channels (802.11n); 20, 40*, and 80 MHz channels (802.11ac Wave 2); 20, 40* and 80 MHz channels (802.11ax)

Note: *40MHz channels are supported only in the 5GHz band.

·                     Up to 1024-QAM on both 2.4 GHz & 5 GHz bands

·                     Packet aggregation

Power

·                     Power over Ethernet: 37 - 57 V (802.3at compatible)

·                     Power consumption: 30W max (802.3at).  Note: actual power consumption may vary depending on the AP usage.

·                     Power over Ethernet injector sold separately

Note: Actual power consumption may vary depending on the AP usage.

Interfaces

·                     1x 10/100/1000 BASE-T Ethernet (RJ45) (Uplink on the back)

·                     1x 10/100/1000 BASE-T Ethernet (RJ45) with 802.3af Power over Ethernet output

·                     2x 10/100/1000 BASE-T Ethernet (RJ45) outputs

·                     1x Passthrough port (non-managed).

Mounting

·                     All standard mounting hard wares, including MA-MNT-MR-H1A, Wall Mount Kit for MR30H/36H

·                     Desktop, ceiling, and wall mount capable

·                     Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes

·                     Bubble level on mounting cradle for accurate horizontal wall mounting

Physical Security

·                     Two security screw options (included) (10 mm long and 2.5 mm diameter and 4.7 mm head)

·                     Kensington lock hard point

Environment

·                     Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)

·                     Humidity: 5 to 95% non-condensing

·                     Operating altitude: Up to 40,000 feet (12,192 meters)

Reliability

·                     Mean Time Between Failure (MTBF): 257,215hrs at +25°C operating temperature

Physical Dimensions

·                     15.5 cm x 11 cm x 2.3 cm (6.1" x 4.33"x 0.9") not including desk mount feet or mount plate

·                     Weight: 17.35 oz (492 g)

Security

·                     Integrated Layer 7 firewall with mobile device policy management

·                     Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal

·                     Flexible guest access with device isolation

·                     VLAN tagging (802.1q) and tunneling with IPsec VPN

·                     PCI compliance reporting

·                     WEP***, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal, WPA3 - Enterprise, WPA3 - Enhanced Open (OWE)**

·                     EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM

·                     TKIP and AES encryption

·                     Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

·                     Cisco ISE integration for Guest access and BYOD Posturing

Quality of Service

·                     Advanced Power Save (U-APSD)

·                     WMM Access Categories with DSCP and 802.1p support

·                     Layer 7 application traffic identification and shaping

Mobility

·                     PMK, OKC, & 802.11r for fast Layer 2 roaming

·                     Distributed or centralized layer 3 roaming

Analytics

·                     Embedded location analytics reporting and device tracking

·                     Global L7 traffic analytics reporting per network, per device, & per application
