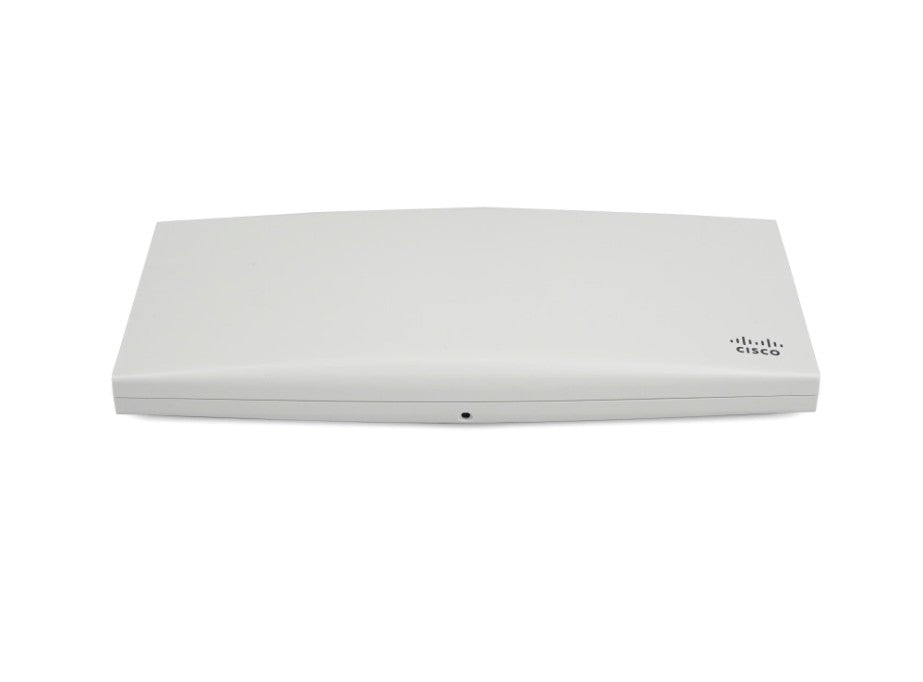

Meraki MR36 Wi-Fi 6 Indoor AP

MR36 Datasheet

High Performance 802.11ax Wireless

The Cisco Meraki MR36 is a cloud-managed 2x2:2 802.11ax access point that raises the bar for wireless performance and efficiency. Designed for next-generation deployments in offices, schools, hospitals, shops, and hotels, the MR36 offers high throughput, enterprise-grade security, and simple management.

The MR36 provides a maximum of 1.5 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization, and a fourth integrated radio delivers Bluetooth scanning and beaconing.

With the combination of cloud management, high performance hardware, multiple radios, and advanced software features, the MR36 makes an outstanding platform for the most demanding of uses—including high-density deployments and bandwidth or performance-intensive applications like voice and high-definition video.



MR36 Datasheet



MR36 and Meraki Cloud Management

Management of the MR36 is performed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without time-consuming training or costly certifications. Because the MR36 is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff.
24x7 monitoring via the Meraki cloud delivers real-time alerts if a network encounters problems. Remote diagnostic tools enable immediate troubleshooting over the web so that distributed networks can be managed with a minimum of hassle.
The MR36’s firmware is automatically kept up to date via the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.





Product Highlights

  • 2x2:2 MU-MIMO 802.11ax
  • 1.5* Gbps dual-radio aggregate frame rate
  • 24x7 real-time WIDS/WIPS and spectrum analytics via dedicated third radio
  • Integrated Bluetooth Low Energy Beacon
  • Integrated scanning radio
  • Enhanced transmit power and receive sensitivity
  • Integrated enterprise security and guest access
  • Application-aware traffic shaping
  • Optimized for voice and video
  • Self-configuring, plug-and-play deployment
  • Sleek design blends into office environments
  • Full-time Wi-Fi location tracking via dedicated 3rd radio



Product Features

·         Dual–radio aggregate frame rate of up to 1.5 Gbps*

·         Multi-User Multiple Input Multiple Output (MU-MIMO)

·         Dedicated third radio delivers 24x7 wireless security and RF analytics

·         Bluetooth Low Energy Beacon and scanning radio

·         Bluetooth Low Energy Beacon and scanning radio

·         Integrated enterprise security and guest access

·         Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

·         Application-aware traffic shaping

·         Voice and video optimizations

·         Self-configuring, self-maintaining, always up-to-date

·         Advanced analytics



Product Specifications

Category

Specifications

Radios
  • 2.4 GHz 802.11b/g/n/ax client access radio
  • 5 GHz 802.11a/n/ac/ax client access radio
  • 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio
  • 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
  • Concurrent operation of all four radios
  • Supported frequency bands (country-specific restrictions apply):
    • 2.412 - 2.484 GHz
    • 5.150 - 5.250 GHz (UNII-1)
    • 5.250 - 5.350 GHZ (UNII-2A)
    • 5.490 - 5.730 GHz (UNII-2C)
    • 5.735 -5.825 GHz (UNII-3)

Antenna
  • Internal Antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)

802.11ax, 802.11ac Wave 2 and 802.11n Capabilities
  • DL-OFDMA**, UL-OFDMA**, TWT support**, BSS Coloring**
  • 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
  • SU-MIMO, UL MU-MIMO** and DL MU-MIMO support
  • Maximal ratio combining (MRC) & beamforming
  • 20 and 40 MHz* channels (802.11n); 20, 40*, and 80 MHz channels (802.11ac Wave 2); 20, 40* and 80 MHz channels (802.11ax)

Note: *40MHz channels are supported only in the 5GHz band..

  • Up to 1024-QAM on both 2.4 GHz & 5 GHz bands
  • Packet aggregation

Power
  • Power over Ethernet: 37 - 57 V (802.3af compatible)
  • Alternative: 12 V DC input
  • Power consumption: 15W max (802.3af).  Note: actual power consumption may vary depending on the AP usage.
  • Power over Ethernet injector and DC adapter sold separately

Note: Actual power consumption may vary depending on the AP usage.

Interfaces
  • 1x 10/100/1000 BASE-T Ethernet (RJ45)
  • 1x DC power connector (5.5 mm x 2.5 mm, center positive)

Mounting
  • All standard mounting hardware included
  • Desktop, ceiling, and wall mount capable
  • Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes
  • Bubble level on mounting cradle for accurate horizontal wall mounting

Physical Security
  • Two security screw options (included) (10 mm long and 2.5 mm diameter and 4.7 mm head)
  • Kensington lock hard point
  • Concealed mount plate with anti-tamper cable bay

Environment
  • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
  • Humidity: 5 to 95% non-condensing
  • Operating altitude: Up to 40,000 feet (12,192 meters)

Reliability
  • Mean Time Between Failure (MTBF): 257,215hrs at +25°C operating temperature

Physical Dimensions
  • 9.84” x 4.72” x 1.42” (25 cm x 12 cm x 3.6 cm), not including desk mount feet or mount plate
  • Weight: 17.35 oz (492 g)

Security
  • Integrated Layer 7 firewall with mobile device policy management
  • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
  • Flexible guest access with device isolation
  • VLAN tagging (802.1q) and tunneling with IPsec VPN
  • PCI compliance reporting
  • WEP***, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal**, WPA3 - Enterprise**, WPA3 - Enhanced Open (OWE)**
  • EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
  • TKIP and AES encryption
  • Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
  • Cisco ISE integration for Guest access and BYOD Posturing

Quality of Service
  • Advanced Power Save (U-APSD)
  • WMM Access Categories with DSCP and 802.1p support
  • Layer 7 application traffic identification and shaping

Mobility
  • PMK, OKC, & 802.11r for fast Layer 2 roaming
  • Distributed or centralized layer 3 roaming
