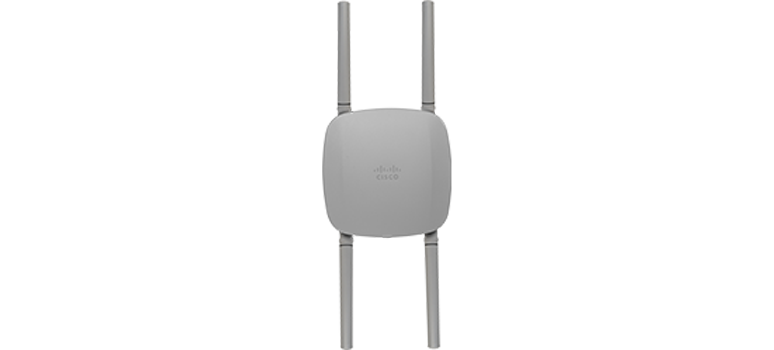

• CW9163E
1 1

Cisco Meraki

CW9163E-MR

CW9163E-MR

$1,614.95 USD
$3,047.07 USD $1,614.95 USD

Save $1,432.12 (47%)

Sale Sold out

Free shipping on orders of $299 or more

Returning customer or larger project? Contact us for premium pricing.

  • Cisco Partner
  • 2-hour guaranteed response, Mon–Fri 8am–5pm CT
  • Call 1-800-768-7875 Press 1 for 24/7 support · 2 for sales

Not sure what you need? Our US-based Cisco certified engineers will help you build the right solution.

Request a Quote

Planning a larger deployment? Request a quote for project and volume pricing.

Ultra-High Performance Wi-Fi 6E Wireless

Catalyst CW9163E AP(W6E, tri-band 2x2,Outdoor) w/MERAKI - CW9163E-MR

CW9163E Datasheet

The Cisco Wireless 9163E is an outdoor-rated, enterprise-class 802.11ax on-prem or cloud-managed access point. This AP is equipped with Tri-Band concurrent radios geared towards low/medium density applications. It will work with different external antennas for required directivity.

It features 2x2 Tri-Band traffic radios (2x2 2.4 GHz + 2x2 5 GHz + 2x2 6 GHz), 1x1 Tri-Band scanning radio and a 2.4 GHz IoT radio for (BLE/Zigbee/Thread etc.). It also has an inbuilt GNSS receiver for 6 GHz AFC compliance.



Flexible Deployment Options

The Cisco Wireless 9163E outdoor Wi-Fi 6E access point is designed with a weatherized and robust enclosure, ensuring uninterrupted wireless access even in the most challenging outdoor environments. As part of the Cisco Wireless 916X series, these access points offer the flexibility to choose between on-premises and cloud management with the ability to change at any time, giving you the freedom to network your way. This next-generation access point is specifically designed to extend your Wi-Fi 6E network outdoors, catering to a wide range of use cases from campus environments and municipal Wi-Fi to stadiums, airport hangers, and everything in between. These access points are not only reliable and secure but also highly flexible and intelligent, adapting to your network requirements seamlessly.

The Cisco Wireless 9163E Wi-Fi 6E access points are equipped with three client-serving 2x2 radios, one IoT radio, and a tri-band scanning radio. It offers a range of advanced features, tailored to meet any outdoor Wi-Fi requirements. With options for a variety of external antennas, the CW9163E provides the flexibility to expand your 6GHz wireless coverage according to your specific needs.

Perfect for organizations that require extended 6GHz Wi-Fi coverage outside, the CW9163E combines high-density coverage with fast and dependable connectivity to address even the most demanding outdoor scenarios. The CW9163E includes a built-in GPS antenna to report location data to AFC services that enable standard power and outdoor operation. It also offers an optional external GPS antenna for extended satellite coverage. Standard power allows for increased range in both indoor and outdoor deployments, unlocking the full potential of 6 GHz Wi-Fi spectrum. By utilizing the 6 GHz band, these access points neutralize interference, minimize latency, and provide wider channels and more spectrum resulting in higher bandwidth to address today’s most crucial wireless requirements.

CW9163E Datasheet

CW916x Family Frequently Asked Questions



Features

·         Tri–radio aggregate frame rate of up to 3.9 Gbps*

·         IoT and Bluetooth Low Energy Radio

·         Automatic Cloud-based RF Optimization

·         Integrated Enterprise Security and Guest Access

·         Dedicated scanning radio delivers 24x7 Air Marshal and RF analytics

·         Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

·         Application-aware traffic shaping

·         Voice and video optimizations

·         Self-configuring, self-maintaining, always up-to-date

·         Meraki Health

·         Choice of Mode





Specifications

Category

Specifications

Radios
  • 2.4 GHz 802.11b/g/n/ax client access radio
  • 5 GHz 802.11a/n/ac/ax client access radio
  • 6 GHz 802.11ax client access radio
  • 2.4 GHz, 5 GHz, and 6 GHz tri-band Air Marshal WIDS/WIPS, spectrum analysis, & location analytics radio
  • 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support Concurrent operation of all five radios

Antennas

CW-ANT-O1-NS-00 Omnidirectional Dipole Self-Identifying Antenna with N-Type Connectors

  • 2.4GHz: Peak gain 4 dBi, omnidirectional in azimuth
  • 5GHz: Peak gain 8 dBi, omnidirectional in azimuth
  • 6GHz: Peak gain 8 dBi, omnidirectional in azimuth

One antenna per pack.  Four antennas are required to fully populate all ports.

CW-ANT-D1-NS-00 4-Port Directional Patch Self-Identifying Antenna with N-Type Connectors

  • 2.4 GHz: Peak gain 8 dBi, directional antenna, (75x30)
  • 5 GHz: Peak gain 9 dBi, directional antenna, (60x30)
  • 6 GHz: Peak gain 9 dBi, directional antenna, (72x27)

CW-ANT-GPS2-S-00 Active GNSS/GPS Antenna with RP-SMA Connector

  • Optional GNSS/GPS external antenna
  • L1/L5 frequency bands
  • Integrated mounting bracket for wall or pole mounting
  • 10ft cable with RP-SMA connector

802.11 ax compatible, 802.11ac Wave 2 and 802.11n Capabilities
  • UL/DL-OFDMA
  • Target Wait Time (TWT)
  • BSS coloring*
  • 2x2 MIMO with two spatial streams
  • Maximal ratio combining (MRC)
  • 802.11ax beamforming
  • 20 and 40 MHz* channels (802.11n)
  • 20, 40*, 80 MHz channels (802.11ac Wave 2)
  • 20, 40*, 80 and 160MHz channels (802.11ax)

Note: *40MHz channels are supported only in 5 & 6 GHz bands

  • Up to 1024-QAM on 2.4 GHz, 5 GHz and 6 GHz bands
  • Packet aggregation - A-MPDU (transmit and receive), A-MSDU (transmit and receive)

Security
  • Integrated Layer 7 firewall with mobile device policy management
  • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
  • Flexible guest access with device isolation
  • VLAN tagging (802.1q) and tunneling with IPsec VPN
  • PCI compliance reporting
  • WPA2-PSK, WPA2-Enterprise, WPA3 - Personal, WPA3 - Enterprise, WPA3 - Enhanced Open (OWE)
  • EAP Local authentication - EAP-TTLS/PAP, PEAP-GTC, EAP-TLS
  •  Advanced Encryption Standard (AES)
  • Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
  • Cisco ISE integration for Guest access and BYOD Posturing
