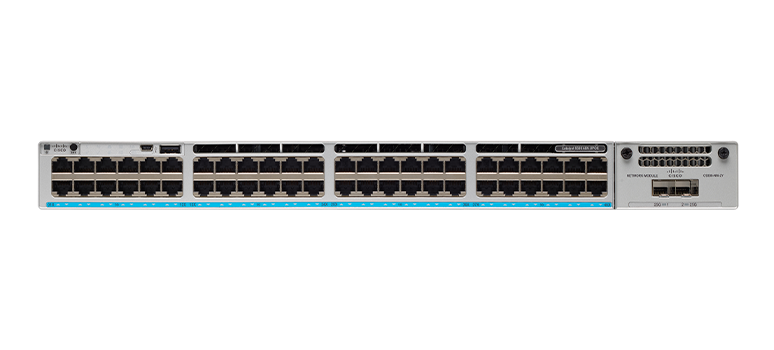

Catalyst 9300 C9300-48UN-M

Catalyst 9300 C9300-48UN-M

Regular price $8,373.05 USD
Regular price $16,745.51 USD Sale price $8,373.05 USD
Sale Sold out

48-port 5GbE UPOE switch

Please contact Hydrasat for returning customer and premium pricing.

The Catalyst 9300-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed wifi access points, the Catalyst 9300-M provides multigigabit ports, 480G stacking, and modular 10/25/40G uplinks. The Catalyst 9300-M delivers resiliency with fast stack convergence and StackPower. The Catalyst 9300-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications. Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as “IOT device” & “Guest.” The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes. By pooling & distributing power across C9300-Ms using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.

Catalyst 9300-M Datasheet - Cisco Meraki Documentation

Highlights

  • Layer-3
  • 40G or 10G modular uplink options on all models (25G on C9300-M)
  • mGig support
  • Dual Dedicated 120G Hardware Stacking Ports
  • UPOE (60W per port) & IEEE 802.3bt type3
  • StackPower in a ring topology supporting up to 4 switches
  • Netflow version 10 (IPFIX) and Encrypted Traffic Analytics
  • Micro-Segmentation via Adaptive Policy (Security Group Tags)

Management

  • Managed via Cisco Meraki Dashboard
  • Zero-touch remote provisioning (no staging needed)
  • Basic configuration capability via local management page
  • Detailed historical per-port and per-client usage statistics
  • Operating System, device, and hostname fingerprinting
  • Automatic firmware upgrades with scheduling control
  • SNMP and SYSLOG support for integration with other network management solutions

Remote Diagnostics

  • Email, SMS and Mobile push notification alerts1
  • Ping, traceroute, cable testing, and link failure detection with alerting
  • Remote packet capture
  • Dynamic and interactive network discovery and topology
  • Combined event and configuration change logs with instant search

Stacking

  • Optional stacking kit allowing 8 switches in a stack with 320Gbps of stacking bandwidth
  • Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
  • Faster convergence

Ethernet Switching Capabilities

  • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
  • 802.1Q VLAN and trunking support for up to 4,094 VLANs (1000 active VLANs with STP enabled)
  • Single Instance of 802.1s Multiple Spanning Tree Protocol (interoperable with RSTP, STP, PVST, RPVST)
  • STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
  • Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad Link aggregation with up to 8 ports per aggregate, multi-chassis aggregates supported on stacked switches
  • Port mirroring
  • IGMP snooping for multicast filtering
  • MAC Forwarding Entries: 32K

Layer 3

  • Static routing, OSPFv2
  • Multicast routing (ASM: PIM-SM)
  • Warm Spare (VRRP) *
  • DHCP Server, DHCP Relay

Security

  • Integrated multi-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate wide password policy enforcement
  • IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing
  • Single-Host/Multi-Domain/Multi-Host/Multi Authentication
  • Port security: Sticky MAC, MAC allow list*
  • DHCP snooping, detection and blocking, Dynamic ARP Inspection
  • IPv4 and IPv6 ACLs
  • Secure Connect *
  • Adaptive Policy

Specs

  • 48 x 100M/1G/2.5G/5G
  • UPoE
  • Switching Capacity - 640 Gbps
  • Stacking Bandwidth - 480 Gbps
  • Forwarding Rate – 476.19 Mpps
