Hydrasat

MS225-24P

MS225-24P

$2,813.26 USD
$5,799.50 USD $2,813.26 USD
Sale Sold out

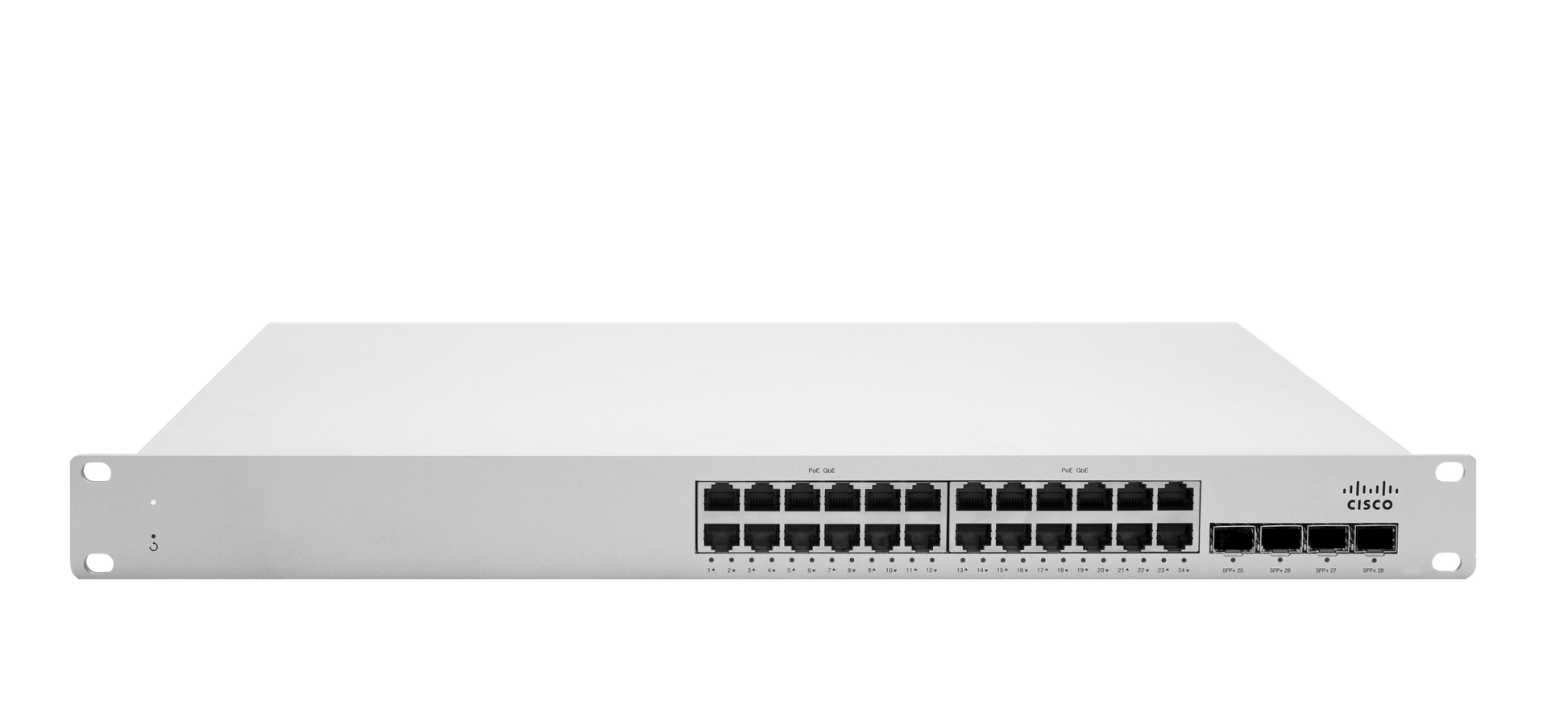

Meraki MS225-24P Network Switch

Please contact Hydrasat for returning customer and premium pricing.

The Cisco Meraki MS225 series switches provide layer 2 access switching and are ideal for deploying to branch locations. With stacking capabilities and 10G SFP+ uplinks on every model, performance is guaranteed. This family also supports an optional, rack-mountable remote PSU (Cisco RPS-2300*) for power redundancy requirements.

With 5 different models, capable of providing up to 740W of PoE+ power over a variety of port densities, including SFP+ capable uplinks, the MS225 line is fully ready to support future wireless infrastructure deployments across a variety of environments.

Meraki MS225 Family Datasheet - Cloud-Managed Security and SD-WAN

Features

·         Managed via Cisco Meraki Dashboard

·         2x Dedicated Stack Ports providing 80G of Stacking bandwidth

·         Remote Packet Capture Tools via Meraki Dashboard

·         Broadcast Storm Control

·         Automatic Firmware upgrades

·         Dynamic ARP Inspection / DHCP Snooping

·         SNMP/Syslog Integration

·         802.1X Authentication

·         IPv4/6 ACL support

·         10/100/1000 Mbps RJ45

·         802.1q VLAN tagging

·         4x 1000/10000 Mbps SFP+

·         Static routing

·         PoE and PoE+ models available for device level powering



MS 225 Models

MS225-24

MS225-24P

MS225-48

MS225-48LP

MS225-48FP

1GbE RJ45

24

24

48

48

48

10GbE SFP+

4

4

4

4

4

Hardware
Stack Port

2

2

2

2

2

Dedicated Mgmt Interface

1

1

1

1

1

Fan Operation

Fanless Operation

Fixed Internal

Fanless Operation

Fixed Internal

Fixed Internal

Power Supply

Fixed Internal

Fixed Internal

Fixed Internal

Fixed Internal

Fixed Internal

Redundant Power Supply

External RPS* (optional)

External RPS* (optional)

External RPS* (optional)

External RPS* (optional)

External RPS* (optional)

PoE/PoE+ Capable

-

Yes, 370W

-

Yes, 370W

Yes, 740W

Layer 3 Routing

Static Routing

Static Routing

Static Routing

Static Routing

Static Routing

Switching Capacity

128 Gbps

128 Gbps

176 Gbps

176 Gbps

176 Gbps

Stacking Bandwidth

80 Gbps

80 Gbps

80 Gbps

80 Gbps

80 Gbps

Mount Type

1U Rack Mount

1U Rack Mount

1U Rack Mount

1U Rack Mount

1U Rack Mount

Dimensions
(h x w x d)

1.72 x 19 x 9.05in
(4.38 x 48.46 x 23cm)

1.72 x 19 x 9.05in
(4.38 x 48.46 x 23cm)

1.72 x 19 x 9.05in
(4.38 x 48.46 x 34cm)

1.72 x 19 x 9.05in
(4.38 x 48.46 x 34cm)

1.72 x 19 x 9.05in
(4.38 x 48.46 x 34cm)

Weight

6.03 lb (2.73 kg)

8.18 lb (3.71 kg)

8.78 lb (3.98 kg)

9.63 lb (4.37 kg)

9.63 lb (4.37 kg)

Power Load (idle/max)

15 / 24 W

21 / 448 W

25 / 42 W

53 / 490 W

54 / 882 W

Operating Temperature

23 °F - 122 °F
-5°C - 50°C

23 °F - 122 °F
-5°C - 50°C

23 °F - 122 °F
-5°C - 50°C

23 °F - 122 °F
-5°C - 50°C

23 °F - 122 °F
-5°C - 50°C

Humidity

5% to 95%

5% to 95%

5% to 95%

5% to 95%

5% to 95%
